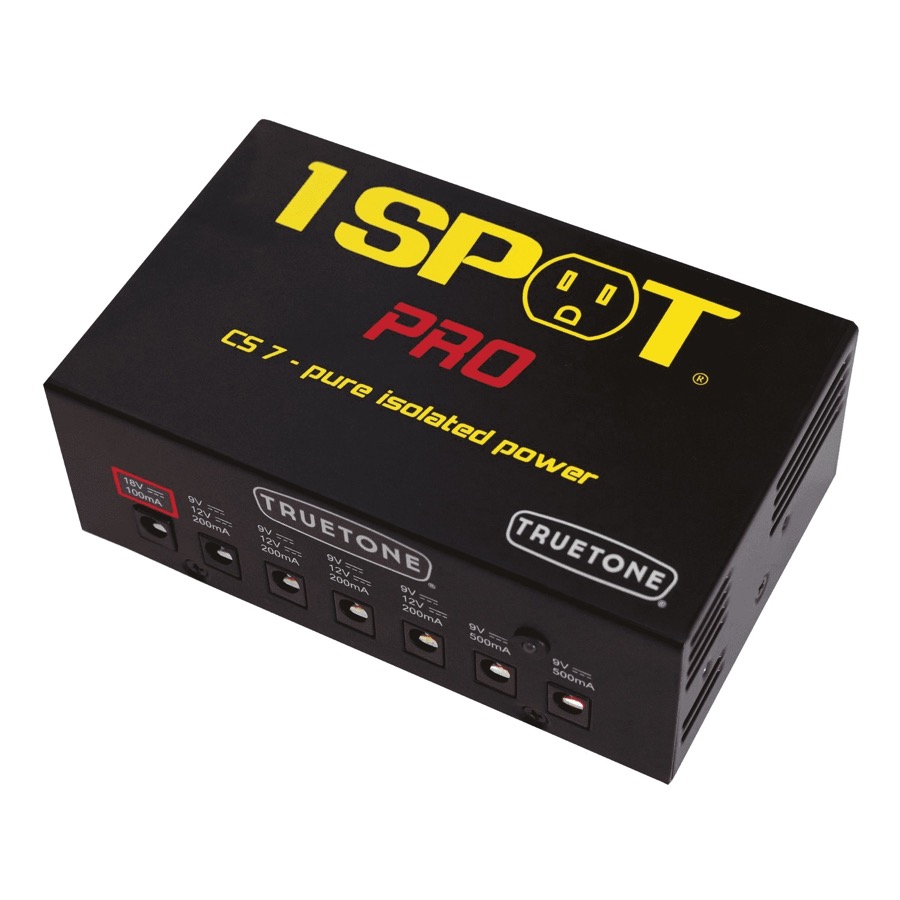

VISUAL SOUND 1 SPOT ALIMENTATORE CS7 PRO7

135,00

Esaurito

Richiedi informazioni
COD: VIS0000000CS7 Categorie: ,

Descrizione

Output 1: 18VDC (100mA)
Outputs 2-5: 9VDC or 12VDC (200mA)
Outputs 6-7: 9VDC (500mA)

Power cables (all are center pin negative polarity):
(4) DC18 (5.5×2.1mm barrel plugs; 18” (457mm) – White
(3) DC12 (5.5×2.1mm barrel plugs; 12” (305mm) – Yellow

Converter Plugs:
(1) CL6 – (5.5×2.1mm barrel input, 5.5×2.5 barrel output; reverse polarity)
Green – for Line 6 DL4/M9/etc. and some Eventide pedals.
(1) CYR – (5.5×2.1mm barrel input, 5.5×2.1 barrel output; reverse polarity)
Red – reverse polarity converter
(1) C35 – (5.5×2.1mm barrel input, 3.5mm male output; tip positive)
Black – 3.5mm (1/8”) plug converter
(1) CBAT – (5.5×2.1mm barrel input, Black battery clip output) Connects to battery clip wires inside pedals that do not have DC jacks.

Dimensioni: 140 x 86 x 50mm

Peso: 592 gr







Informazioni aggiuntive

Marca per ecommerce

TRUETONE-EFFETTI
